| Marca | Gigabyte |

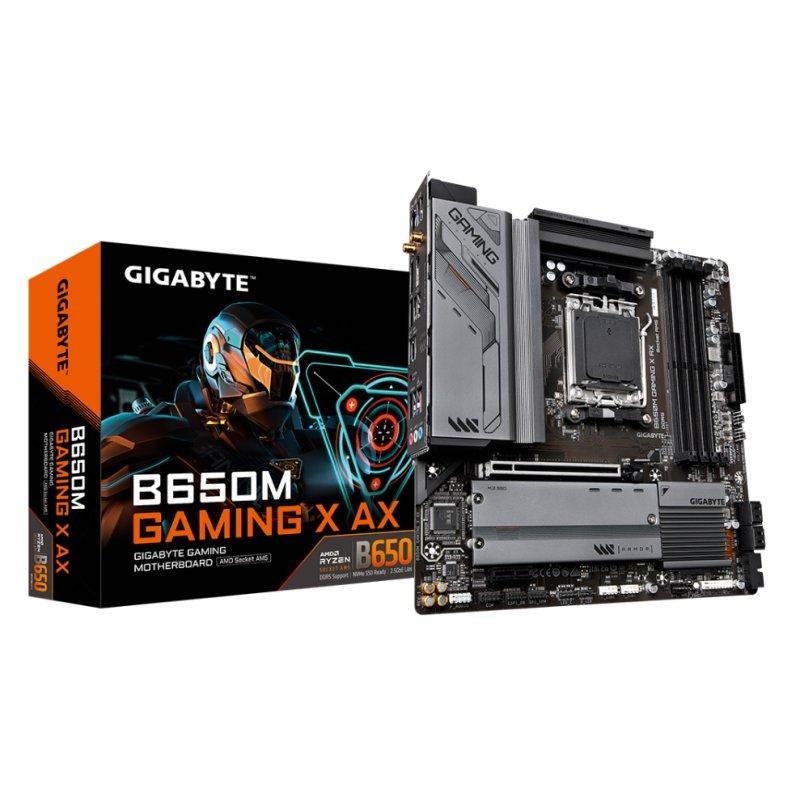

| Modelo | B650M GAMING X AX |
| Plataforma | – mATX (30.5 cm x 24.4 cm) |
| Chipset | – AMD B650 |
| CPU Soportados |
– AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors |
| Memoria | – Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules – 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory – Dual channel memory architecture – Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules – Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
|
Slots Expansión
|
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) – 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| Gráficos | – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
|
Puertos E/S,
Conectores
|
Conectores Internos E/S
– 1 x 24-pin ATX main power connector |
|
Otras
Características
|
Almacenamiento – 4 x SATA 6Gb/s connectors – 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU, M2B_CPU) – 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) – RAID 0, RAID 1, and RAID 10 Audio – Realtek® Audio CODEC – High Definition Audio – 2/4/5.1/7.1-channel USB – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support – 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel – 1 x USB 3.2 Gen 1 port on the back panel – 3 x USB 2.0/1.1 ports on the back panel – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports available through the internal USB headers Inalámbrico – AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.2 – Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate – Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate LAN – Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Sistema Operativo – Windows 10 x64, Windows 11 x64 |
| Fecha Revisión | 13-11-2023 por RTY |
| Peso | 1 kg |
|---|
